16KW Portable High frequency induction heating equipment
- First, Small rod heating forging, pin head heating forging
Second,valve hardening, pliers hardening
Third,Brazing

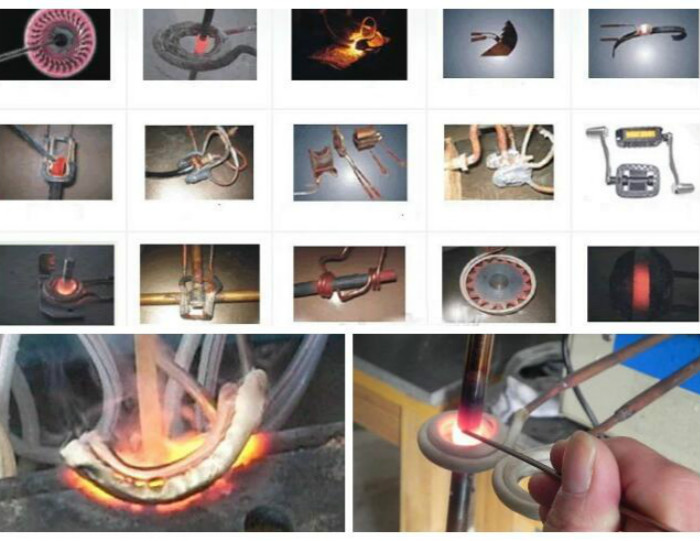

Applications of induction heating welding brazing heater
First, Small rod heating forging, pin head heating forging
Second,valve hardening, pliers hardening
Third,Brazing
1. Diamond tools, abrasives brazing welding
2. hard alloy ,saw baldes brazing welding
3. lathe tool , milling cutter, reamer brazing
4. drill bits, coal bits brazing welding
5. various of machinery parts and components brazing welding
Technical parameters of high frequency induction heating equipment
| Model | TGH-16 | TGH-26 |
| Input Voltage | Single phase220 V +/-10% 50-60HZ | Two phase 380V+/-10% 50-60HZ |
| Input current | 2-35A | 3-45A |
| Output power | 16kw (power adjustable 3-20KW) | 26KW |
| Oscillation frequency | 30-100KHZ | 30-100KHZ |
| Cooling water pressure | 0.1-0.2MPA | 0.1-0.2MPA |
| Size and weight | 410×200×420mm/28kg | 410*200*420MM/35KG |
| Cooling water temperature | Below 50 degree | Below 50 degree |
