Ultra/super high frequency induction heating machine

  • 1. SHF series have higu frequency, able to heating material of φ 0.1mm. 2. MOSFET technology based and high frequency.
Share


Features

1. SHF series have higu frequency, able to heating material of φ 0.1mm.

2. MOSFET technology based and high frequency.

3. Easy to install and operate. Do not need any basis to work.

4. 100% duty cycle, 24 hours no-stop melting ability, energy saving and environmental protection.

5. Small size and light weight,

6. Easy and safe to use: All-round indicator lights controller, much safer and easier to operate.

Technical parameters

Models

Maximum input power

Oscillating frequency

Maximum input current

Input voltage

Duty cycle

SHF-04A

4KW

100-250KHZ

15A

Single phase 220V

80%

SHF-05AB

5KW

0.5-1.1MHZ

15A

Single phase 220V

80%

SHF-06A-I

6.6KW

200-500KHZ

30A

Single phase 220V

80%

SHF-06A-II

6KW

200-700KHZ

SHF-06A/AB-III

10KW

0.5-1.1MHZ

SHF-10A

20KW

50-300KHZ

15A

3phase 380V

100%

SHF-20AB

20KW

50-250KHZ

30A

3phase 380V

100%

SHF-30AB

30KW

50-200KHZ

45A

3phase 380V

100%

SHF-40AB

40KW

50-200KHZ

60A

3phase 80V

100%

SHF-60AB

60KW

30-150KHZ

90A

3phase 380V

100%

SHF-100AB

100KW

30-150KHZ

150A

3phase 380V

100%

SHF-160AB

160KW

30-120KHZ

240A

3phase 380V

100%

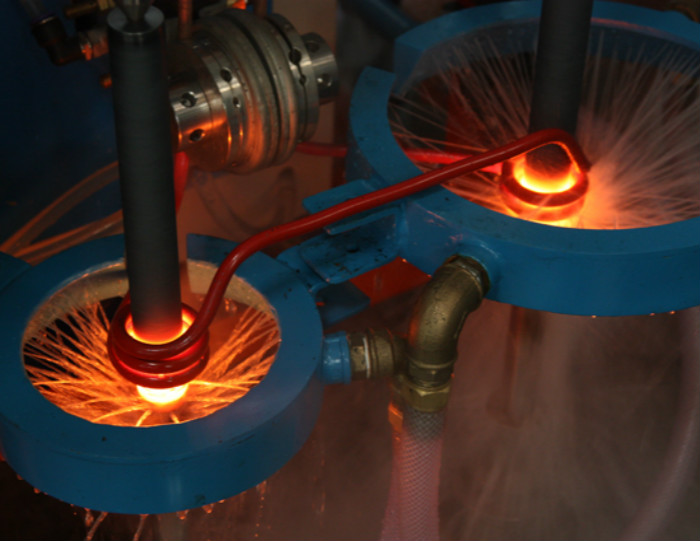

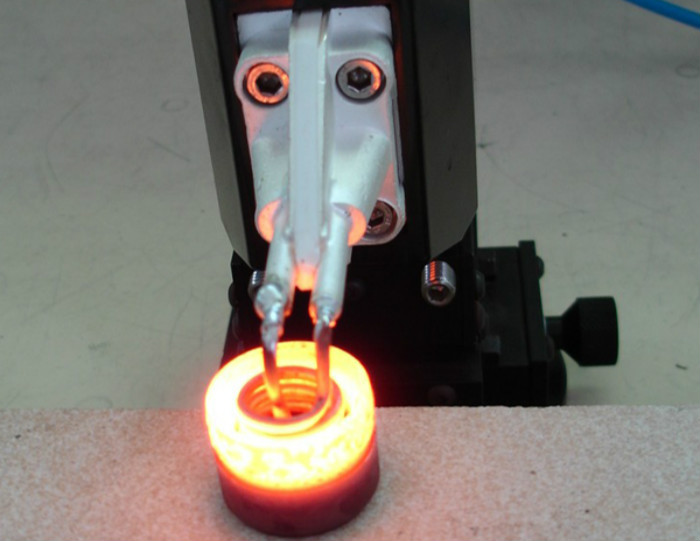

Induction Heating Application

1. welding/brazing for carbide saw blade tooth;

2. welding/brazing and annealing for spectacle frames and its spare parts;

3. welding/brazing/heating for jewelry & watches;

4. Electronics Industry: tin/silver/copper brazing/soldering for very small evenΦ0.1mm below wire and pieces of various electronic components;

5. Electromechanical industry: silver brazing for metal joints, quenching and tempering for micro motor & shaft;

6. Wire Industry: wire strip annealing;

7. Welding tools, cutter, hardening for shoe mouth & blade;

8. Toy Industry: winding thin metal sheet tempering.
