200KW Bolts nuts forging induction heating furnace

200KW bolts nuts forging induction heating furnace

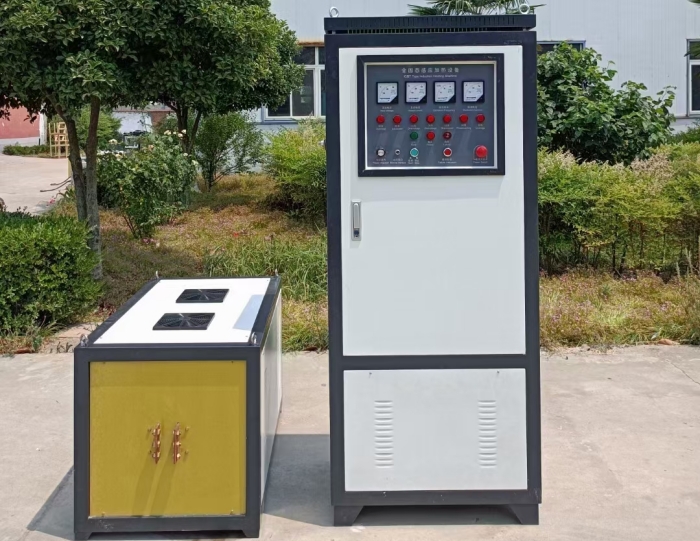

Medium frequency induction heating power supply

Induction heating:

Put workpiece into the sensor. The sensor is hollow brass tubes, which is generally input intermediate frequency or high frequency alternating current (300-300000Hz or higher). Generating an alternating magnetic field with the same frequency of the induced current in the workpiece. The induced current distribution in the workpiece is uneven: surface strength, while weak in the interior, the central portion close to 0. Use the skin effect enables rapid heating of the surface of workpiece.The surface temperature rises to 800-1000 ℃  within a few seconds, while the central portion temperature is small.

Applications

1, through thermal forming

A, all kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist hot upsetting, hot.

B, metal heat annealing. Such as: tensile steel tube, pipe, smashed head; wire, heating wire nail; stainless steel annealed, rose type.

2, heat treatment

Various types of hardware, electrical, hydraulic, pneumatic components, automobiles, and motorcycle parts and other mechanical parts of the surface of the metal, bore, in part or in whole quenching. Such as: hammer, knife, scissors, pliers and various types of shafts, cams, sprockets, gears, valves, ball pin, large-scale Machine Tool, ductile iron quenching.

3, brazing

Various types of carbide blades, turning, milling, planer, reamer, diamond saw blade, saw welding; grinding, drilling, cutting welding; brass, copper, stainless steel and other metal materials, the composite bottom of the pot Welding.

4, metal melting: melting gold, silver and copper.

5, the other heated areas

Plastic pipe, cable, wire heating film; food, beverage, pharmaceutical industry uses aluminum foil.

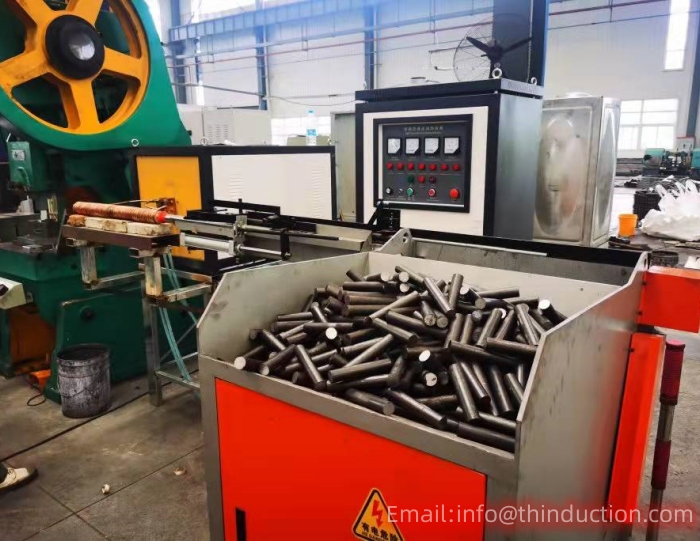

Automatic feeding machine

1.One year free replacement spare parts

2.Provide long-terms technical support

3.About installation: provide install technical skecth, install and operating instruction, or send engineer to helps if need.

4.About spare parts: beyong warranty period, you can buy spare parts from us with very low cost.

Welcome to contact us for more information.
