600KW Automatic feeding Induction Heating System

Through heating is a heating process which enable the internal temperature of heated part to be equal to the surface temperature approximately.

Hot forging and hot rolling of fastner,hardware tool, automobile/motorcycle fittings, rigging, pipe fitting,twist drill.

If diameter of work piece is bigger, frequency selected shall be lower,E.g.Through heating of bar stock.

If the diameter of workpiece is bigger or the heating required is quicker, the power selected will be higher.

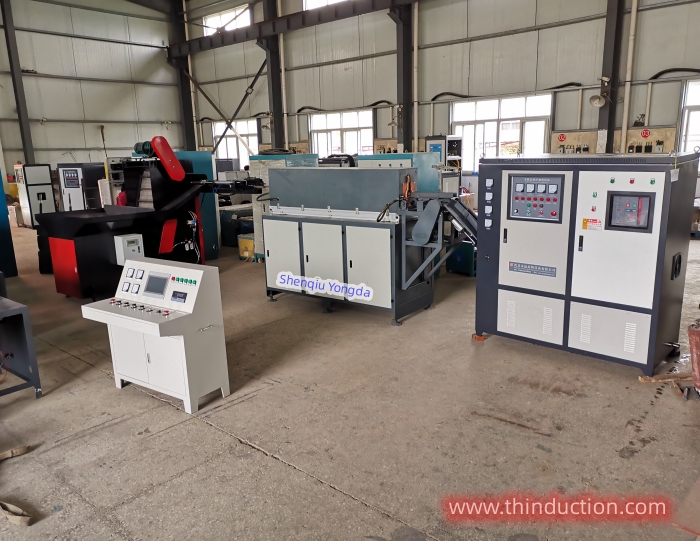

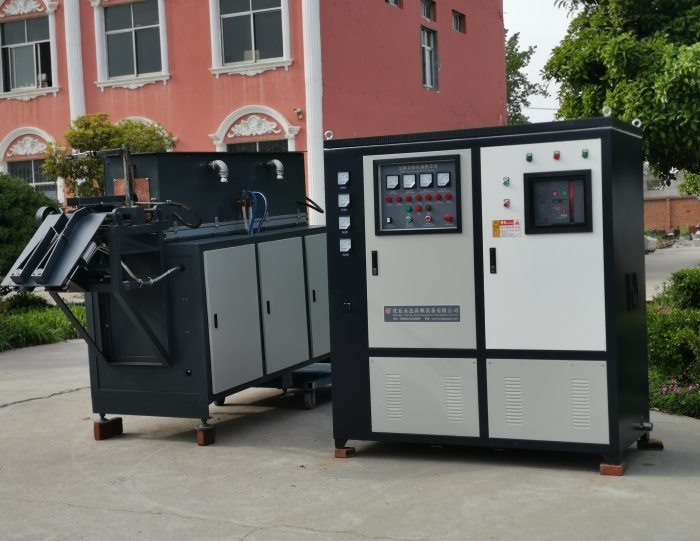

Composition of automatic feeding steel rod induction heating system

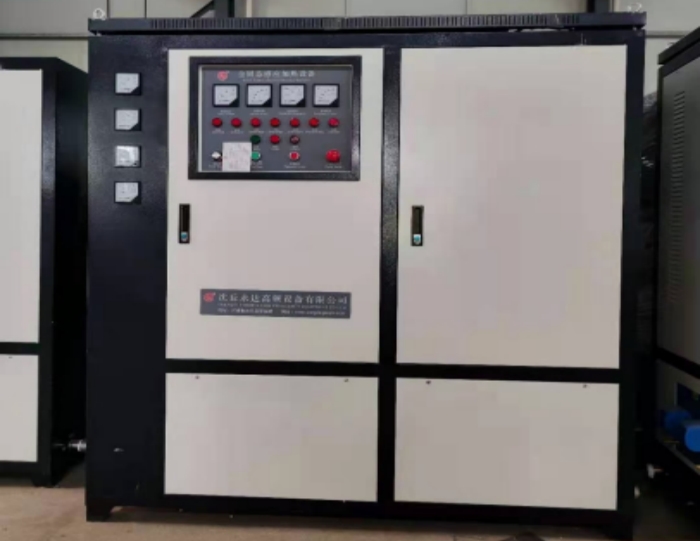

1.600kw medium frequency induction heating generator

2.induction coils furnace with work bench

3.total control console

47.Automatic upload feeder machine

Diathermy (forging) application

(1) Round steel categories:

A. bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod

B. stainless steel tableware, stainless steel bolts and nuts

C. tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,

D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing

(2) sheet/plate categories:

A. forged stainless steel cutlery, automotive steel  plate.

B. sheet folding: folding iron hand jack, metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring

C. embossed: Iron Works embossing, embossing motorcycle brake pedal heating, sanitary ware.

D. Forming: bending, upsetting head, punching, flatten, step by step tight angle iron molding, from nails, rasp, sanitary ware

(3) pipe deformation: pipe heat distortion, fire extinguishers stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching

(4) other categories:

Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains pin, watch cases, railway rail pressure ring.

Main technical parameters of WPS-600KW induction heating system
