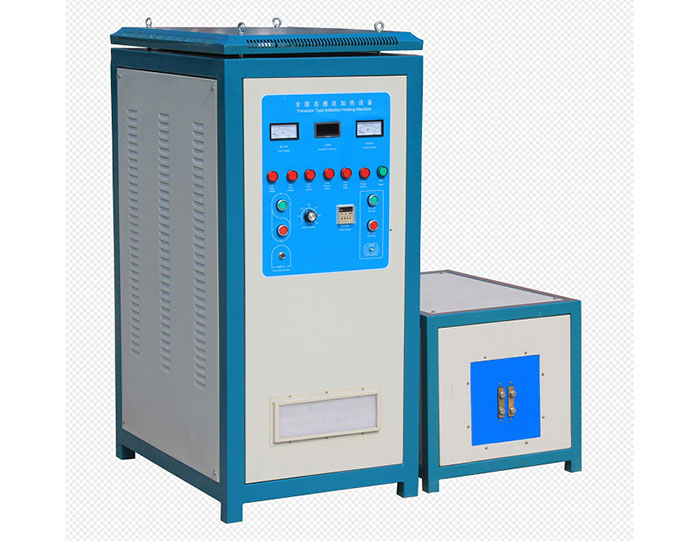

120KW High Frequency Induction Heating Machine of Metal

  • IGBT modules, save energy than traditional high frequency tube heater.
Share


Advantages of high frequency induction heating machine :

1. IGBT modules, save energy than traditional high frequency tube heater.

2. Protect full.Over current.over voltage,lack of phase,water shortage, etc. more than ten alarm lamps.

3. Heating fast.Within1 second ,temperature rise up to 1200 degree,even higher.

4. No need contacting work pieces, safety, safe and reliable.

5. Environmental friendly,no pollution, good for worker's health

6. Easy to change induction coils, for heating different shape of steel billet

7. Easy to install and operate.

8. Low maintenance cost


Applications of high frequency induction heating machine

1, through thermal forming

A, all kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist hot upsetting, hot.

B, metal heat annealing. Such as: tensile steel tube, pipe, smashed head; wire, heating wire nail; stainless steel annealed, rose type.

2, heat treatment

Various types of hardware, electrical, hydraulic, pneumatic components, automobiles, and motorcycle parts and other mechanical parts of the surface of the metal, bore, in part or in whole quenching. Such as: hammer, knife, scissors, pliers and various types of shafts, cams, sprockets, gears, valves, ball pin, large-scale Machine Tool, ductile iron quenching.

3, brazing

Various types of carbide blades, turning, milling, planer, reamer, diamond saw blade, saw welding; grinding, drilling, cutting welding; brass, copper, stainless steel and other metal materials, the composite bottom of the pot Welding.

4, metal melting: melting gold, silver and copper.

5, the other heated areas

Plastic pipe, cable, wire heating film; food, beverage, pharmaceutical industry uses aluminum foil.


Specifications of TZP-200A/120KW induction heating machine

Model

WZP-200

Work power:

3 phase 380V+/-10%, 50-60HZ

Input voltage:

320V-420V can be changed, depend on your country's electric power

Input current:

6-200A

Oscillation frequency:

10-50khz

Cooling water pressure

0.3 MPA

Size of generator:

850*600*1330

Size of transformer

780*540*520mm

Weight of generator

131kgs

Weight of transformer

89kgs
