IGBT Induction Melting Machine for Copper Brass
- induction melting furnace, melting aluminum, copper, zinc, bronze, etc.

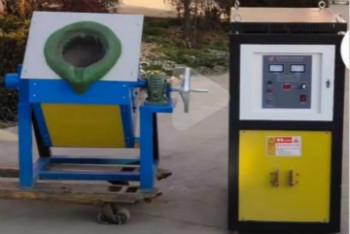

Automatic tilting induction melting furnace
Model | steel ,iron, stainless steel | Copper,gold,silver melting capcity |
ZP-15 15KW | 3KG | 5KG |
ZP-25 25KW | 5KG | 10KG |
ZP-35 35KW | 10KG | 30KG |
ZP-45 45KW | 18KG | 50KG |
ZP-70 70KW | 28KG | 80KG |
ZP-90 90KW | 45KG | 100KG |
ZP-110 110KW | 60KG | 150KG |
ZP—160KW | 100KG | 200KG |
Advantages
1. For the small amount of melting, a crucible is enough. For the large amount of melting, a titling furnace will be more convenient for you to pour the solution.
2. The melting time is about 20-30min for hot furnace and 40-50min for cold furnace.
3. Precious metal melting, like gold, sliver, platinum, etc.
4. Semiconductor material melting
5. Specialized steel, iron, copper melting
6. Metal alloy melting, like aluminum alloy, zinc alloy, copper alloy, etc.
7. Sponge iron,glass
8. Other metal melting applications
Two Kinds of melting furnace are available for you to choose according to your application1. For small melting amount(0.5-5kgs), crucible with power supply machine is enough.
2. For large amount melting, tilting /Sationary furnace system is convenient to pour the metal liquid.
1. Induction heating machine Power supply with crucible
2.Tilting/Dump Furnace with power supply machine
Major components to the Induction melting Furnace system:
1, The power supply/MF Generator,
2, the compensating capacitor/Capacitor box
3, The iFurnace with nduction coil/smelting crucible.
