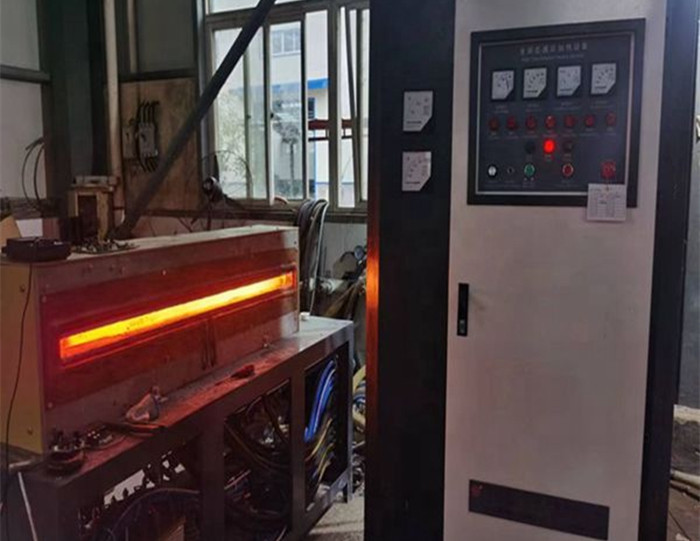

Steel billets induction heating furnace
- steel billet induction heating furnace 400kw medium frequency induction furnace
Steel billets induction heating furnace

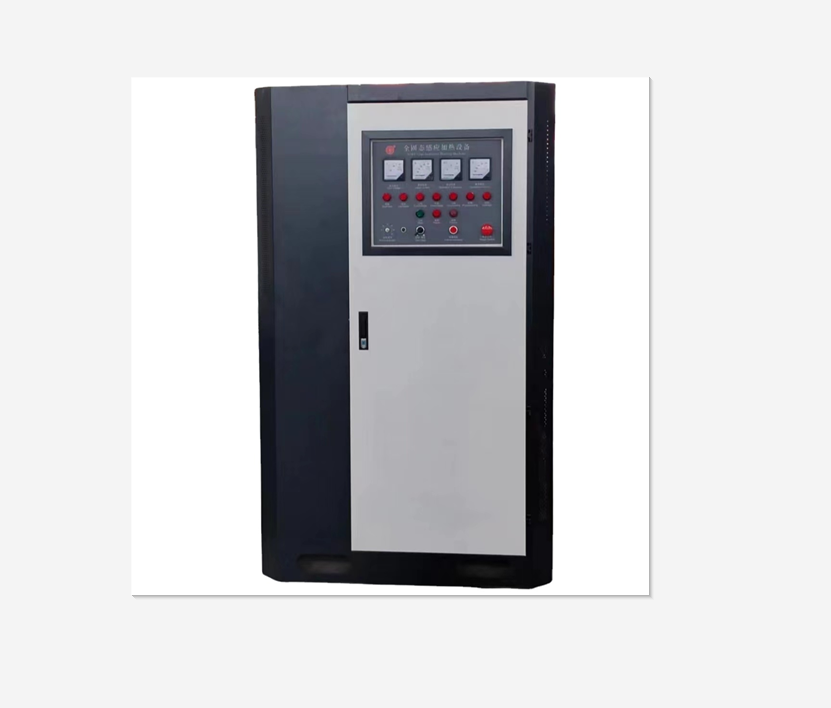

Power supply: MF 400KW
Induciton coils Furnace:customized,according to size of work piece
Advantages
1.Adopts Germany Siemens IGBT modules, save energy 30% than traditional high frequency tube heater.
2. Protect full.Over current.over voltage,lack of phase,water shortage, etc. more than ten alarm lamps.
3. Heating fast.Within1 second ,temperature rise up to 1200 degree,even higher.
4. No need contacting work pieces, safety, safe and reliable.
5. Environmental friendly,no pollution, good for worker's health
6. Easy to change induction coils, for heating different shape of steel billet
7. Easy to install and operate.8. Low maintenance cost
400kw steel billet heating furnace technical parameters
| Items | Parameters |
| Rated power | 400KW |
| Input voltage | 380V |
| Phase | 3 |
| Rated voltage of Electric furnace | 1500V |
| Rated DC current | 1200A |
| Rated MF frequency | 1-10KHZ
|
| Rated temperature | 1250℃ |
| Power supply specifications | WPS-400
|
Whatever size of your steel billet, just tell us your detailed requirement, we will recommend you the best suitable machine model and solution.
After-sale service
Before salesOur professional technical recommend the right machine,and can also customized special machine as customer’s requirement and special parts.
Sales followingDuring machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.
After SalesMachine have one year quality warranty ,one year free replacement spare parts .
Supply pictures or video help customer to install machine.
Provide long-terms technical support.
