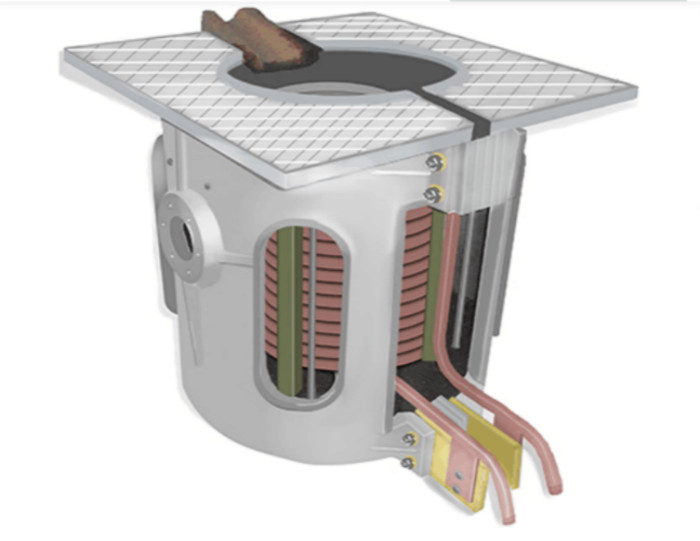

Advantages of induction melting furnace
With strong and durable, beautiful and generous furnace body.Especially for large capacity furnace which need the stronger steel structure .From the point of view of safety dumping has better adopt steel shell furnace.
2. Selenium steel made of magnetic yoke of the magnetic field lines generated by the induction coil has played the role of shielding emission to reduce the magnetic leakage so that it improves the efficiency and energy saving is 5%~8%.
3. The furnace cover reduces heat loss and improves the equipment safety.

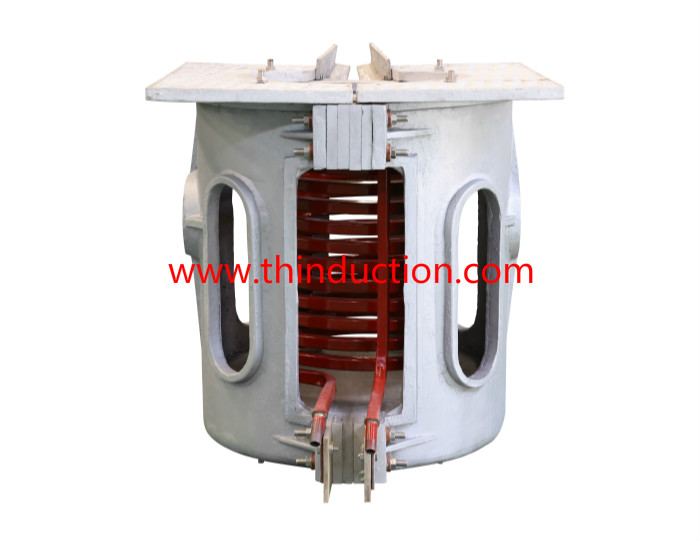

Performance of Aluminum shell furnace
1. Aluminum shell body adopts thick high-quality aluminum alloy shell to reduce leakage magnetic flux and ensure furnace body strength
2. The thick-walled induction coils used by our company use T2 standard copper tubes to provide more smelting energy, and the open space between of turns of induction coils improves the electrical efficiency.
3. The open type hearth reduces water vapor, and a cooling ring is designed at the bottom to extend the service life of the lining
4. The use of integral refractory bricks instead of ordinary asbestos rings greatly reduces the cost of furnace maintenance at a later stage

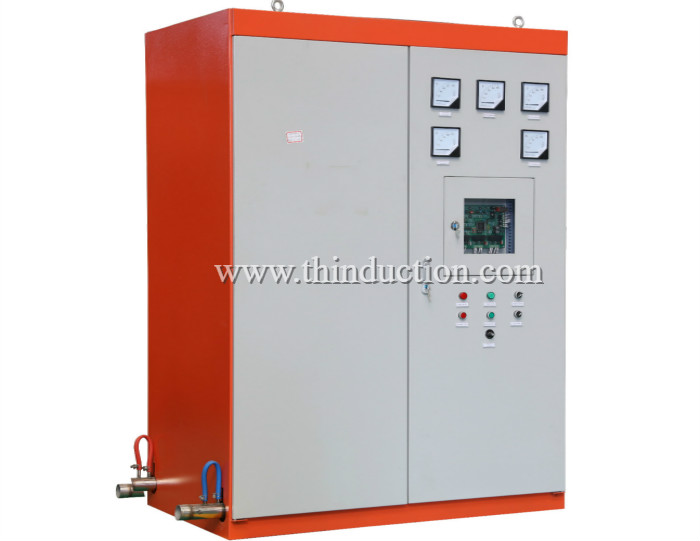

Technical parameters of medium frequency power supply
Model | InputVoltage (V) | InputCurrent (A) | DCVoltage (V) | Input Current (A) | IF Voltage(±10%V) | IF Frequency(HZ) | IFPower(KW) |
KGPS-250kw | 380V6 phases | 408A | 500V | 500A | 1200V | 100~500HZ | 250KW |
KGPS-500kw | 816A | 1000A | 500KW | ||||
KGPS-800kw | 1305A | 1600A | 800KW | ||||
KGPS-1000kw | 380V 6 phases | 816A | 1000V | 1000A | 2400V | 100~400HZ | 1000KW |
KGPS-1500kw | 1220A | 1500A | 1500KW | ||||
KGPS-2000kw | 1630A | 2000A | 2000KW | ||||
KGPS-2500kw | 2040A | 2500A | 2500KW | ||||
KGPS-3000kw | 480V 6 phases | 1960A | 1250V | 2400A | 2900V | 100~300HZ | 3000KW |
KGPS-3500kw | 2280A | 2800A | 3500KW | ||||
KGPS-4000kw | 2610A | 3200A | 4000KW | ||||
KGPS-4500kw | 2940A | 3600A | 4500KW | ||||
KGPS-5000kw | 575V 6 phases | 2720A | 1500V | 3330A | 3400V | 100~250HZ | 5000KW |
KGPS-6000kw | 3260A | 4000A | 6000KW | ||||
KGPS-8000kw | 4350A | 5330A | 8000KW | ||||
KGPS-10000kw | 620V 6 phases | 5100A | 1600V | 6250A | 3600V | 100~200HZ | 10000KW |
KGPS-15000kw | 7650A | 9370A | 15000KW |
