Applications of induction melting furnace
1. Induction melting furnace mainly used for melting cast iron, cast steel , copper and aluminum alloy scrap for casting dies.
2. Induction metal melting furnace can also be used together with selfheated furnaces and electric arc furnace for heating orkeeping warm the molten iron and molten steel.
3. induction melting furnace is applicable to melt steel , cast iron , copper, aluminum and other metals.
4. induction melting furnace can be produced with different volume , such as 150kg ,250kg ,350kg ,500kg ,750kg ,1000kg etc...
5. induction melting furnace has 1650C operation temperature .
6. induction melting furnace will be matched with metal liquid ladle if customer need

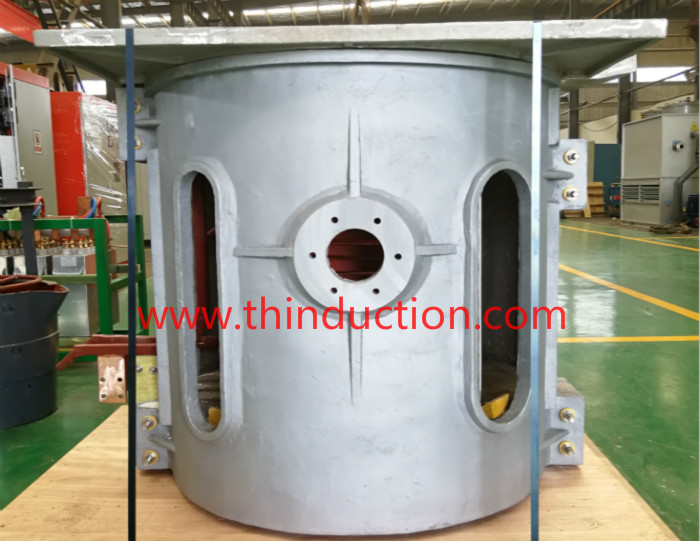

Performance of Aluminum shell furnace
1. Aluminum shell body adopts thick high-quality aluminum alloy shell to reduce leakage magnetic flux and ensure furnace body strength
2. The thick-walled induction coils used by our company use T2 standard copper tubes to provide more smelting energy, and the open space between of turns of induction coils improves the electrical efficiency.
3. The open type hearth reduces water vapor, and a cooling ring is designed at the bottom to extend the service life of the lining
4. The use of integral refractory bricks instead of ordinary asbestos rings greatly reduces the cost of furnace maintenance at a later stage

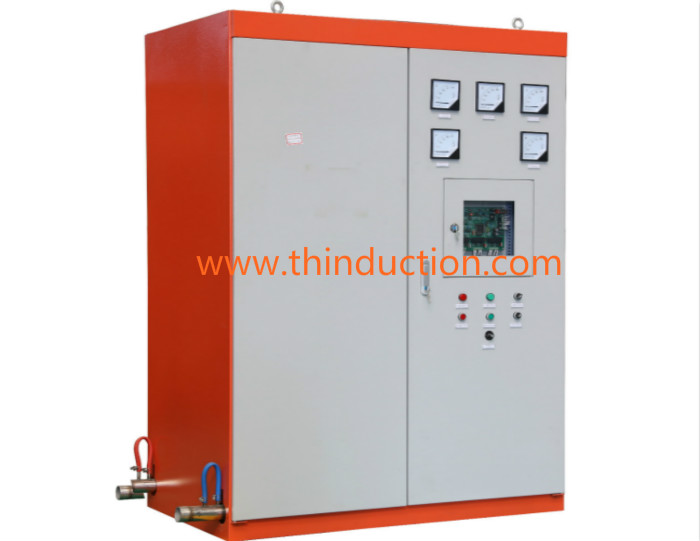

Technical parameters of medium frequency power supply
Model | Medium frequency power supply | Melting Furnace | Matching transformer | |||||||
KGPS Power | Voltage | MF Voltage | Dimensions | Frequency | Weight | Size | Induction coils ID | weight | ||
100kg | 100KW | 3×380V | 750V | 1000×800×1700 | 2500 | 0.5t | D630AL shell | D300 | 0.3T | 125 |
250kg | 250KW | 3×380V | 750V | 1300×850×2000 | 1500 | 0.8t | D730AL shell | D450 | 0.7T | 250 |
350kg | 350KW | 3×380V | 750V | 1300×850×2000 | 1500 | 0.8t | D730 Al shell | D580 | 0.9T | 400 |
500kg | 400KW | 3×380V | 1500V | 1300×850×2000 | 1000 | 1t | D1100 AL shell | D580 | 1T | 500 |
750kg | 600KW | 3×380V | 1500V | 1300×850×2000 | 1000 | 1t | D1100AL shell | D580 | 1.2T | 630 |
1T | 850KW | 3×660V | 2400V | 1300×850×2000 | 1000 | 1.2t | 1180AL Shell | D720 | 1.3T | 900 |
1.5T | 1000KW | 3×660V | 2500V | 1300×850×2000 | 800 | 1.2t | D1250 Al shell | D760 | 1.8T | 1250 |
2T | 1500KW | 3×660V | 2500V | 2400×1000×2000 | 500 | 1.6t | D1350AL Shell | D860 | 2T | 1600 |
3T | 2000KW | 3×950V | 3200V | 2400×1000×2000 | 500 | 1.6t | D1400 AL shell | D980 | 2.5T | 2500 |
5T | 3000KW | 6×950V | 3400V | 2400×1000×2000 | 500 | 2.5t | Steel shell | D1140 | 4.5T | 3300 |
10T | 6000KW | 6×1250V | 3700V | 3500×1000×2200 | 300 | 3t | Steel shell | D1450 | 23T | 7200 |
15T | 10000KW | 6×1250V | 4000V | 4000×1200×2200 | 220 | 3.5t | Steel shell | D1800 | 32T | 12500 |
