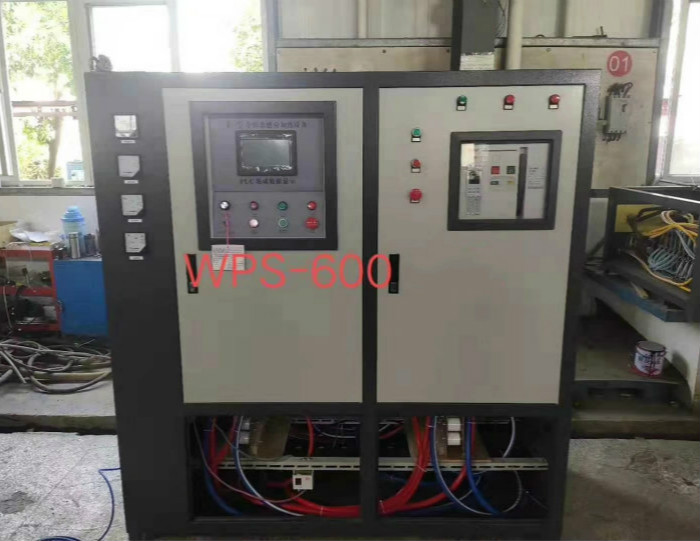

IGBT Medium Frequency Induction Heating Furnace

  • Our company integrates the advantages of intermediate frequency induction heating furnace
Share

Product Advantages :

1 Heating temperature stability, small temperature difference

2 Saving energy for more than 10%

3 Integrated Designing

4 Stable and have a long life

5 full loading and cold starting

6 frequency automatically tracking technology

7 small pollution of harmonic distortion


Technical parameters of IGBT MF medium frequency induction heating furnace

Model

Input voltage

Output power

Oscillation frequency (KHZ)

Cooling water amount (T/H)

Cooling water pressure (MPA)

IGBT MF-200KW

3-380V

200KW

2-10KHZ

5

0.2-0.3MPA

IGBT MF-250KW

3-380V

250KW

2-10KHZ

6

0.2-0.3MPA

IGBT MF-300KW

3-380V

350KW

2-10KHZ

8

0.2-0.3MPA

IGBT MF-400KW

3-380V

400KW

2-10KHZ

12

0.2-0.3MPA

Applications of induction heating furnace : diathermy (forging)

(1) Round steel categories:

A. bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod

B. stainless steel tableware, stainless steel bolts and nuts

C. tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,

D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing

(2) sheet/plate categories:

A. forged stainless steel cutlery, automotive steel  plate.

B. sheet folding: folding iron hand jack, metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring

C. embossed: Iron Works embossing, embossing motorcycle brake pedal heating, sanitary ware.

D. Forming: bending, upsetting head, punching, flatten, step by step tight angle iron molding, from nails, rasp, sanitary ware

(3) pipe deformation: pipe heat distortion, fire extinguishers stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching

(4) other categories:

Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains pin, watch cases, railway rail pressure ring.
