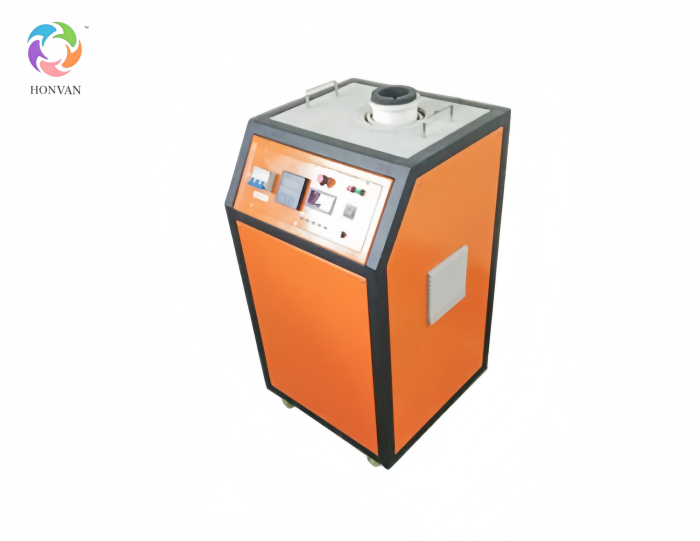

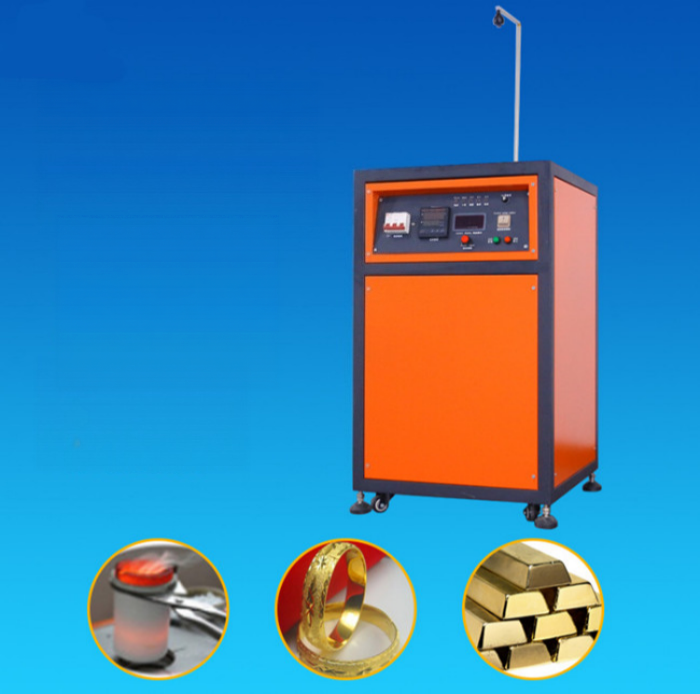

Gold induction melting machine , induction smelter, induction melting furnace

Equipment Features

1. This high-frequency electromagnetic induction heating equipment is applied for melting. It is used for smelting small quantities of gold, silver, platinum, steel and various metallic materials. It is mainly adopted for metal melting, sample preparation and material analysis. It is one of the commonly used devices for metal property analysis in universities, research institutes and enterprise technology centers.

2. Compact size and light weight. The integrated unit is about the same size as a computer mainframe.

3. Adopts IGBT power devices and our proprietary converter control technology.

4. Simple operation; operators can master it within a few minutes. Easy installation. Only power and water connections are required for operation; no professional installer is needed.

5. Fast melting speed, ultra-compact footprint, high efficiency & energy saving, environmentally friendly with no pollution.

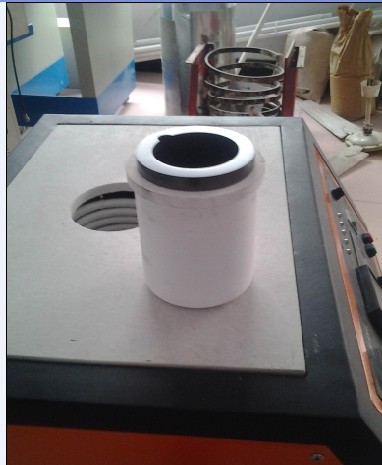

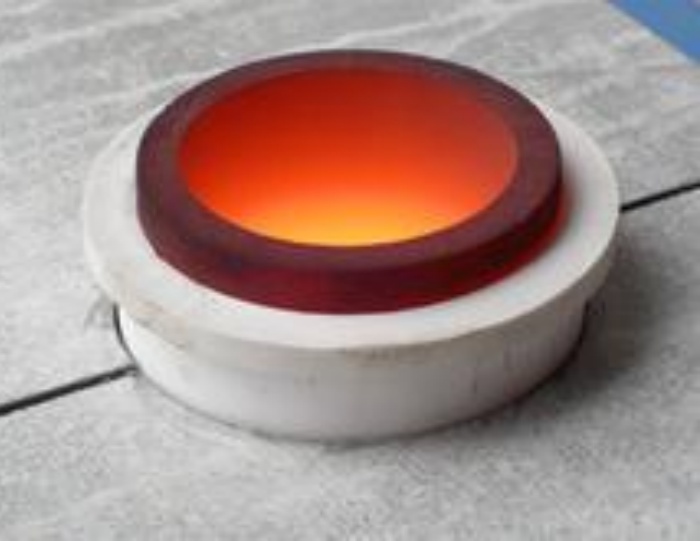

6. Available crucible types: graphite crucible, ceramic crucible and high-purity graphite crucible.

7. Single batch melting capacity: 0.5 kg – 4 kg; melting time per batch: 5 – 10 minutes.

8. Furnace temperature up to 1700 ℃.

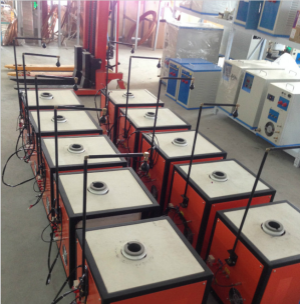

We specialize in supply 2kg & 4kg high-frequency melting furnaces, as well as 10kg, 20kg, 30kg, 50kg, 100kg, 120kg and 150kg medium-frequency melting furnaces.

The equipment rapidly heats metals inside the crucible until melting, supporting processes including smelting, extraction, purification, casting and mould pouring. It can reach a furnace temperature of 1700℃. Featuring quick and convenient crucible replacement, compact size, light weight, high-voltage-free safety design, energy conservation, environmental protection, low noise and zero waste gas emission, this furnace replaces coal-fired, gas-fired, oil-fired and conventional resistance furnaces. As a new-generation metal melting device, it is suitable for factory production, small home workshops, and small-batch sample melting experiments in schools and research institutes.

Power supplies for induction melting furnaces mainly include:

1. High-frequency power supply and medium-frequency power supply

2. Melting furnace types by structure: integrated melting furnace, split melting furnace, tilting melting furnace, fixed melting furnace and coil-type melting furnace.

3. Each model has its own unique advantages and characteristics for customers to select according to practical working conditions.
