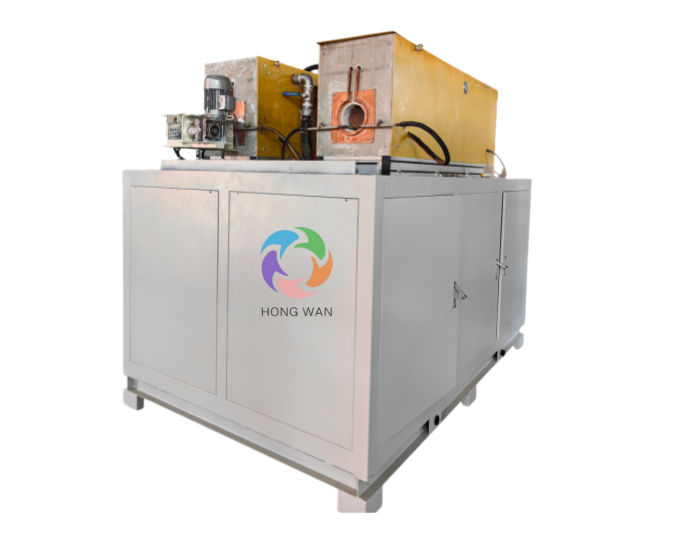

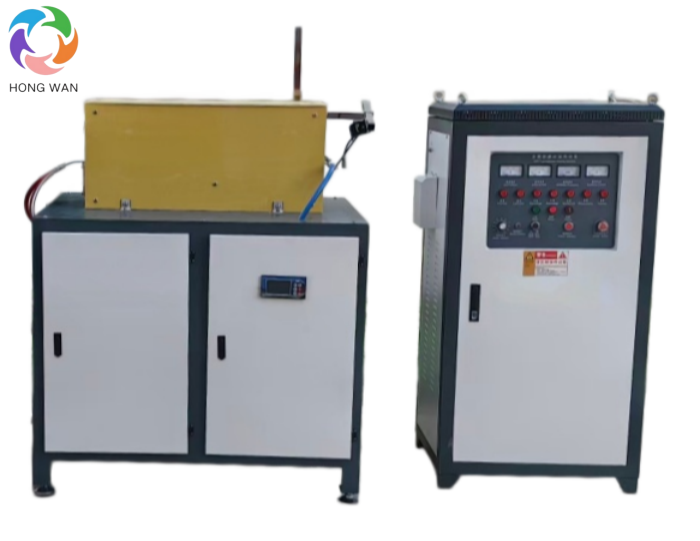

Automatic Steel Bar Feeding MF Forging Induction Heating Machine

Medium frequency induction forging ,heating furnace, bolts nuts forging

Inquire Now Next Product

product description

Automatic Steel Bar Feeding Medium Frequency forging induction heating Machine

Automatic steel bar feeding IGBT Medium frequency forging induction heating Machine

Induction heating:

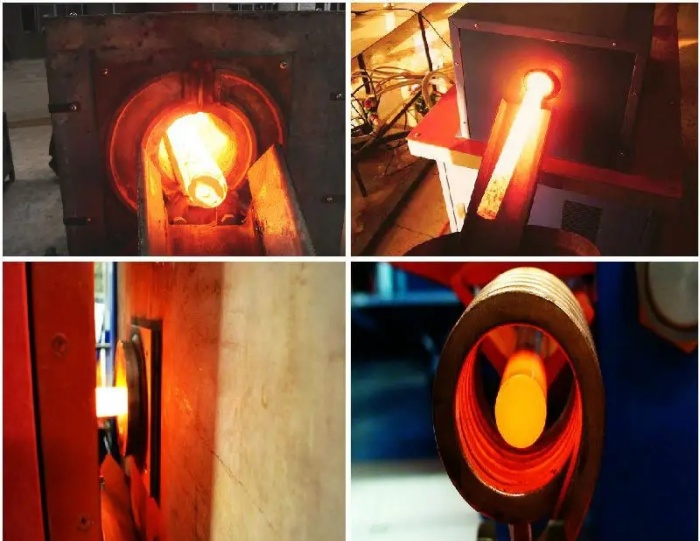

Put workpiece into the sensor. The sensor is hollow brass tubes, which is generally input intermediate frequency or high frequency alternating current (300-300000Hz or higher). Generating an alternating magnetic field with the same frequency of the induced current in the workpiece. The induced current distribution in the workpiece is uneven: surface strength, while weak in the interior, the central portion close to 0. Use the skin effect enables rapid heating of the surface of workpiece.The surface temperature rises to 800-1000 ℃ within a few seconds, while the central portion temperature is small.

Advantages:

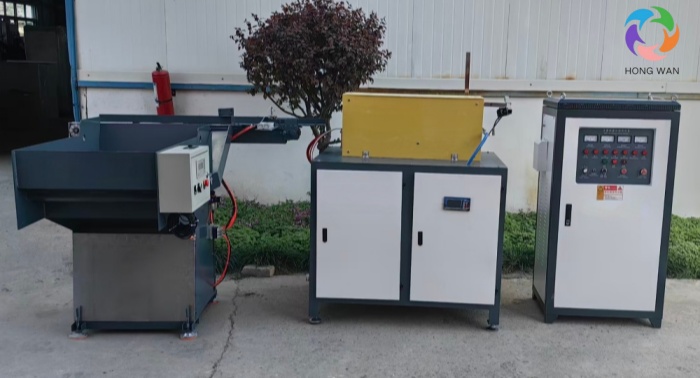

Our automatic steel bar feeding IGBT medium frequency forging induction heating equipment is a dedicated preheating unit for metal forging production lines. Fitted with an integrated auto feeding system, it automatically transports steel bars into the heating coil without manual handling, realizing continuous unmanned production and greatly boosting production output while cutting labor expenses.

Powered by advanced solid-state IGBT inverter modules, the machine achieves over 93% energy conversion efficiency, far more energy-saving than outdated tube heating machines. It delivers consistent cross-sectional heating for steel bars, avoiding cold cores and partial overheating to stabilize metallurgical performance and improve finished forging rates.

This all-in-one heating unit features a compact layout that saves workshop space. Multiple safety protections including overvoltage, overcurrent, overheat and feeding interlock systems ensure reliable 24-hour nonstop operation. With CE certification, this induction heating equipment is widely adopted in hot forging, upsetting and metal forming workshops globally.

Technical parameters

Model number	(V)Input voltage	(A)Maximum input current	(khz)Output oscillation frequency	(Mpa)Inlet pressure	(℃)Cooling water temperature
HPS-50kw	380±5%	100	3-10	0.3	≤40
HPS-100kw	380±5%	200	3-10	0.3	≤40
HPS-160kw	380±5%	320	3-10	0.3	≤40
HPS-200kw	380±5%	400	3-10	0.3	≤40
HPS-300kw	380±5%	600	3-10	0.4	≤40
HPS-400kw	380±5%	800	3-10	0.4	≤40
HPS-500kw	380±5%	1000	3-10	0.4	≤40
HPS-600kw	380±5%	1200	3-10	0.4	≤40
HPS-700kw	380±5%	1400	3-10	0.4	≤40
HPS-800kw	380±5%	1600	3-10	0.4	≤40
HPS-1000kw	380±5%	2000	3-10	0.4	≤40

Automatic feeding steel bar forging induciton heating machine

Delivery time: 15-20 workdays

1.One year free replacement spare parts

2.Provide long-terms technical support

3.About installation: provide install technical skecth, install and operating instruction, or send engineer to helps if need.

4.About spare parts: beyong warranty period, you can buy spare parts from us with very low cost.

Welcome to contact us for more information.
