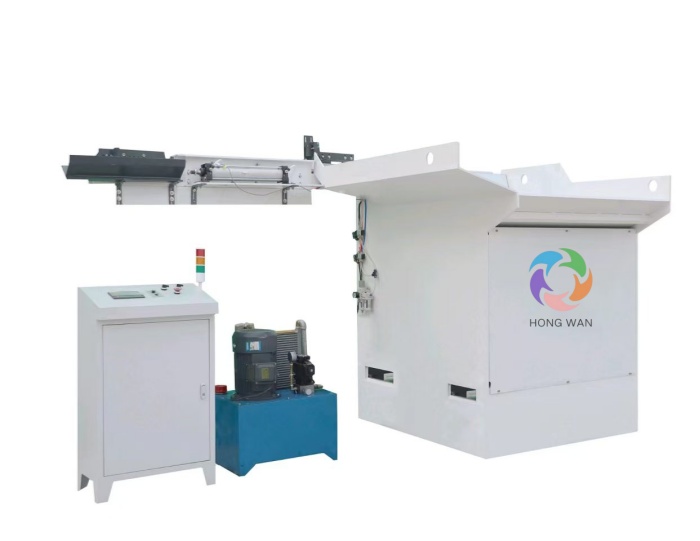

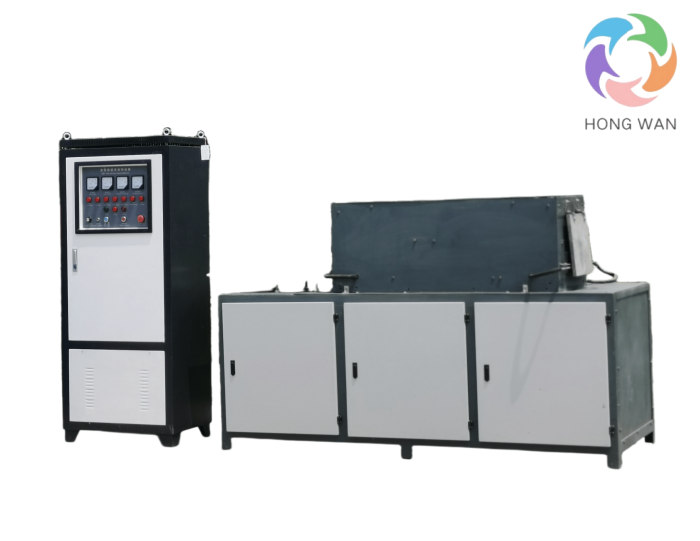

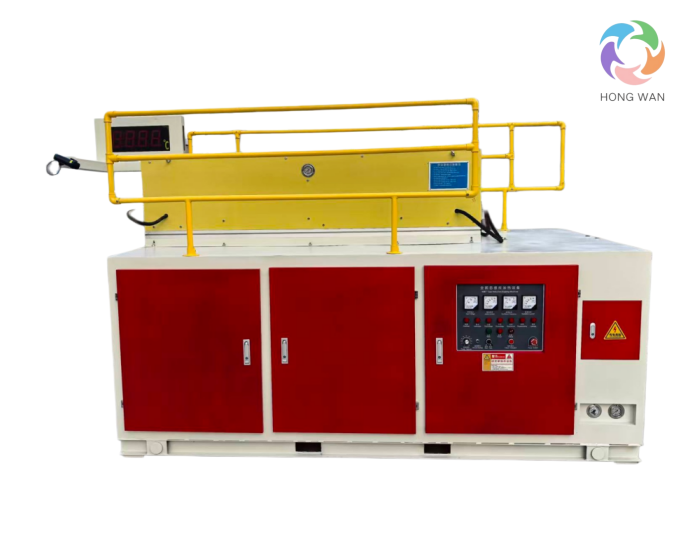

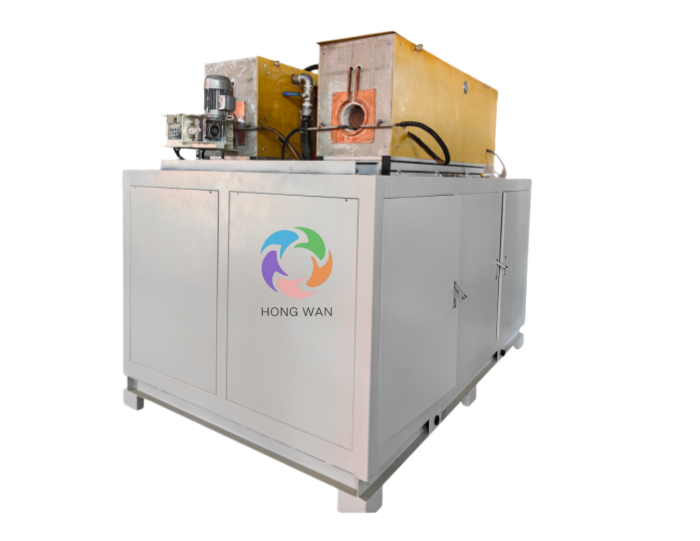

IGBT Medium Frequency Induction Heating Furnace for Steel Aluminum Cooper Rod

IGBT Medium Frequency Induction Heating Furnace is used for forging steel rod, aluminum rod, copper rod, bolts nuts forging. Heating uniform ,heating fast, high output .This horizontal integrated IGBT medium frequency induction heating furnace is specially designed for continuous preheating of steel, aluminum and copper bars before forging. Built-

Inquire Now Next Product

product description

Horizontal Integrated IGBT Medium Frequency Induction Heating Furnace for Steel, Aluminum & Copper Bars

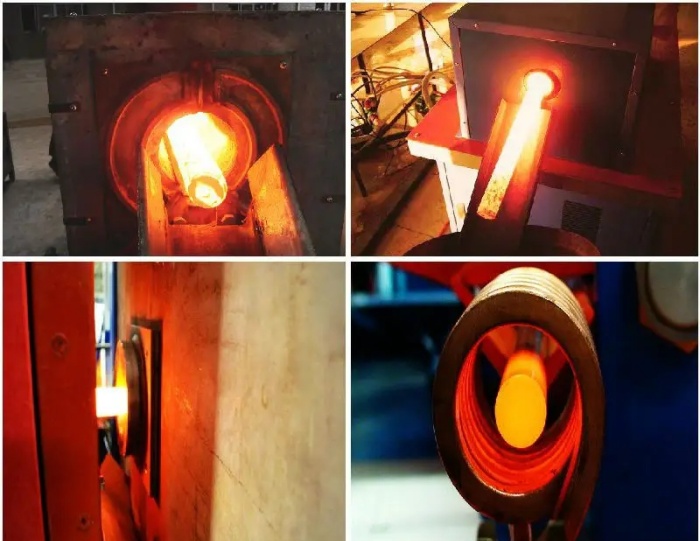

Induction heating used for diathermy forging industry

1, steel plate heating, bending forming.

2, standard parts, through-heat forming of fasteners.
3, hardware tools diathermy, such as pliers, wrenches and other heating and thermoforming.

4. The tapping of the taper shank of
the prospecting rod.

5, steel pipe through thermoforming such as elbows.

Advantages

This horizontal integrated IGBT medium frequency induction heating furnace is specially designed for continuous preheating of steel, aluminum and copper bars before forging. Built-in automatic feeding structure realizes fully unmanned feeding, conveying and heating, perfectly matching automated forging production lines.

Adopting high-efficiency IGBT solid-state inverter, the unit reaches over 95% heat conversion efficiency to cut electricity costs drastically. It delivers uniform cross-section heating for metal rods, eliminating cold core and local overheating to stabilize forging quality and raise finished product yield.

The compact horizontal all-in-one design saves workshop floor space, easy to install and relocate. Equipped with interlock feeding protection, overheat, overcurrent and overvoltage safety systems, it supports stable 24-hour non-stop industrial operation with low maintenance costs. Certified with CE standard, this induction heating machine is widely used in hot forging, upsetting and metal forming of steel, copper and aluminum billets worldwide.

Technial parameters

Model number	(V)Input voltage	(A)Maximum input current	(khz)Output oscillation frequency	(Mpa)Inlet pressure	(℃)Cooling water temperature
HPS-50kw	380±5%	100	3-10	0.3	≤40
HPS-100kw	380±5%	200	3-10	0.3	≤40
HPS-160kw	380±5%	320	3-10	0.3	≤40
HPS-200kw	380±5%	400	3-10	0.3	≤40
HPS-300kw	380±5%	600	3-10	0.4	≤40
HPS-400kw	380±5%	800	3-10	0.4	≤40
HPS-500kw	380±5%	1000	3-10	0.4	≤40
HPS-600kw	380±5%	1200	3-10	0.4	≤40
HPS-700kw	380±5%	1400	3-10	0.4	≤40
HPS-800kw	380±5%	1600	3-10	0.4	≤40
HPS-1000kw	380±5%	2000	3-10	0.4	≤40
