250-450kg/h Complete Biomass Pelletizing Equipment

Multifunctional Complete Pelletizing Equipment

Our factory Developed and designed European and American style based on years of technical accumulation, integrated with advanced foreign technologies and in-depth research on diversified customer demands, this complete pelletizing production line supports pellet processing for both fuel and feed materials with a wide range of applicable raw materials. It integrates multiple functions including crushing, mixing, conditioning, pelletizing and cooling. Featuring a concise and elegant appearance, the equipment can meet the operation requirements of various end users.

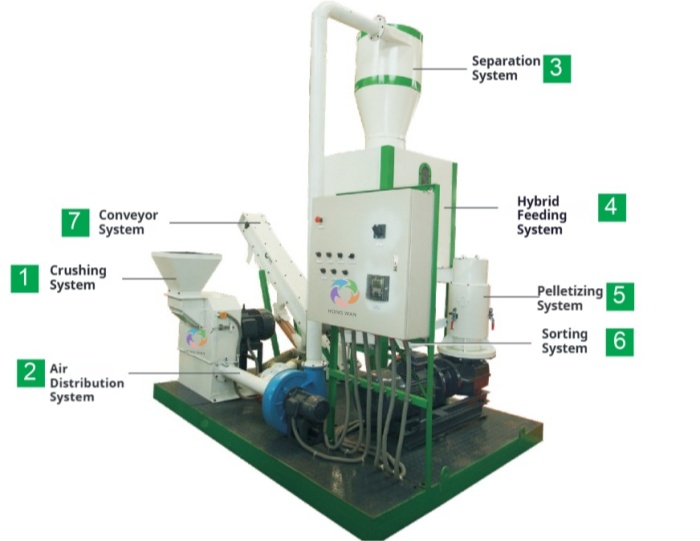

The complete set consists of a crusher, separation system, air conveying system, mixing feeder, conditioning system, pelletizer, grading system, cooling system and conveying mechanisms. Variable frequency control is adopted to regulate key production procedures. The whole production line boasts complete and rational technological processes and strong adaptability, satisfying the production demands of customers with different production scales.

Raw material: Biomass

Pellet size: 6–12 mm

Pellet density: 1.0 t/m³

Output: 250–450 kg/h

(Materials: sawdust, miscellaneous wood, waste timber, crop straw, peanut shells, etc.)

Total installed power: 41.31 kW

Overall machine dimension: 1960×3500×3500 mm
