4-5t/h biomass pellet production line

Detailed introduction of each section of the production line

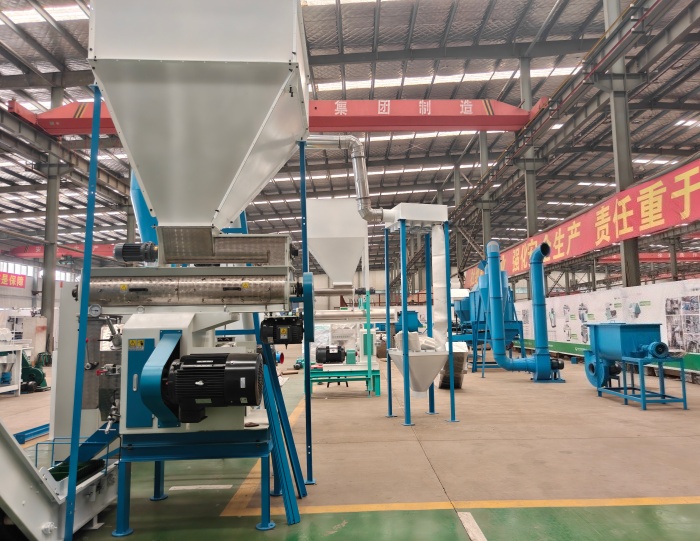

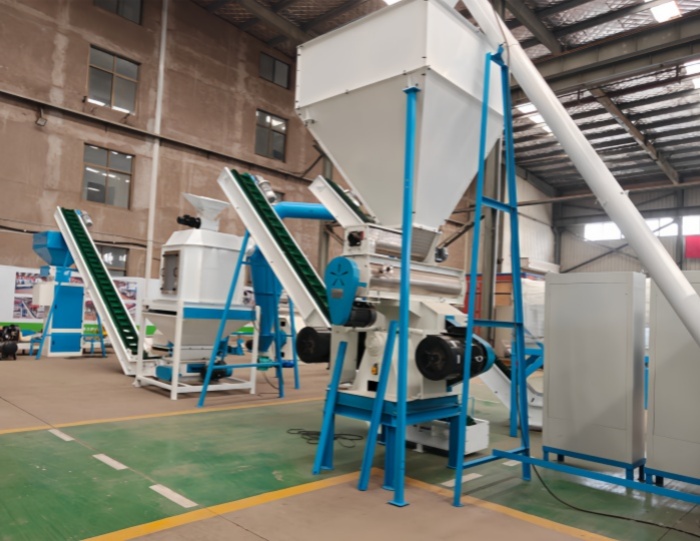

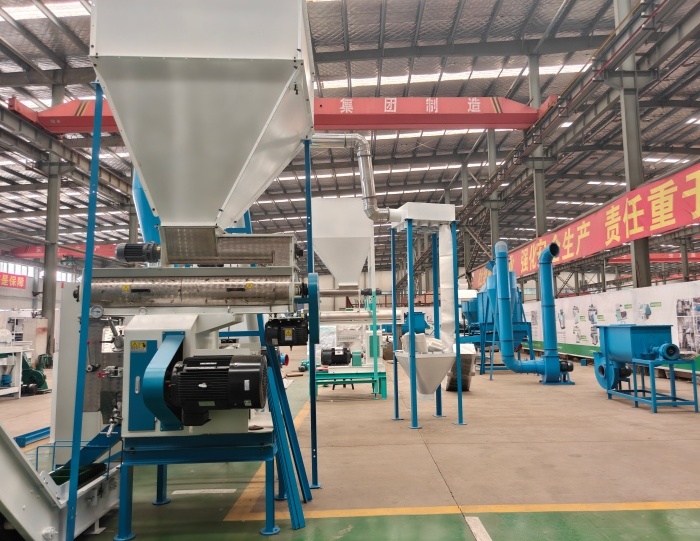

Complete 4-5 ton/hour automated biomass ring die pelleting production line. It includes a comprehensive crusher, wood chip hopper, water droplet pulverizer, sawdust hopper, drum dryer, dual-hopper feeder, two biomass ring die pellet mills, a cooling hopper, and a packaging machine. This system realizes the entire production process from raw material crushing, grinding, drying, pelleting, cooling to final packaging. The entire production line is designed to be automated, scientific, and continuous, producing high-calorific-value pellet fuel that is easy to store and transport. This production line has been exported to more than 50 professional biomass pellet energy plants worldwide.

In addition to our standard production lines, we specialize in crafting customized biomass pellet production lines with capacities ranging from 0.5 to 10 tons per hour.We offer complimentary layout planning and design based on your specific plant area, supported by installation guidance from our technical team—available both online and on-site to ensure a smooth project rollout. We welcome your inquiries.

Crush

There are two main machines in crushing process, wood chipper and hammer mill. When the raw materials you prepare to process are log, wood chips or other big size materials, or the thickness is more than 10mm, and size is more than 50mm * 50mm (L * W), generally, you need to use the Wood Chipper to chip them into small pieces firstly, then crush these small pieces raw materials into wood powder with diameter less than 3mm by Hammer Mill (Crusher),so that the material can enter the hole of pellet mill to be pelletized well.

Dry

The moisture of crushed materials is pretty important when pelletizing, and the best moisture content to pelletize is about 10-15%. The HONGWAN rotary dryer is made up of stove and main rotary dryer, which can reduce the moisture from 60% to 10%. We use sawdust, wasted wood, and coal to fuel the stove which can largely save electricity consumption. And the rotary dryer is specially designed for energy saving purpose; the dryer outside is covered with special cotton material sheet to prevent the heat from outrunning.

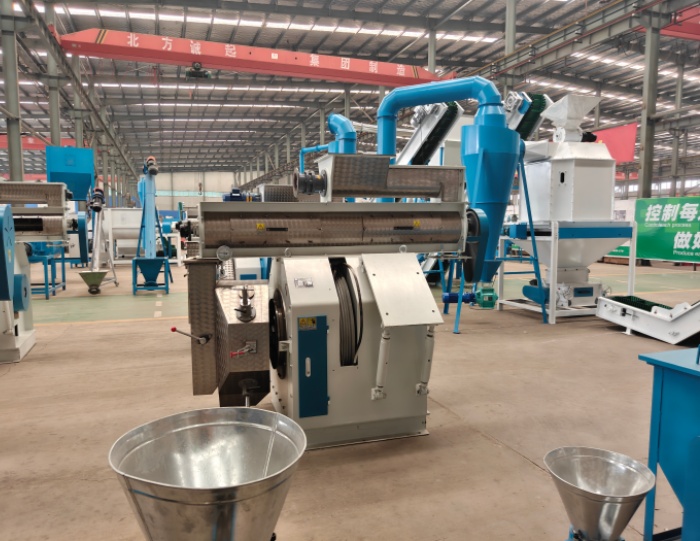

Pellet making

This is the most significant procedure, when pelletizing, you should continuously put raw material into the pellet mill to guarantee the pellet mill working uninterrupted, the die and roller will interact each other, thus press material into the holes of die to form pellets. The die diameter can be adjusted according to the end use of pellets. Pay attention not to put your finger or some other sundries into the chamber. Our biomass pellet machine is designed for pelletizing all kinds of wood, not only softwood, but also hardwood and we apply different ring die with different compression ratio.

Cooler

Because a lot of heat will be produced during the pelletizing process, when the finished pellets leave the pellet mill, they are hot and moist, the temperature is about 60-80 degree, and the moisture content is about 15%. Thus we need to use a cooler to reduce the moisture of pellet in order to make sure the pellet can be easily stored, and help the pellet low down their high temperature and to get high destiny pellets, which have better combustion characteristics. Silo is available if you need.

Packer
