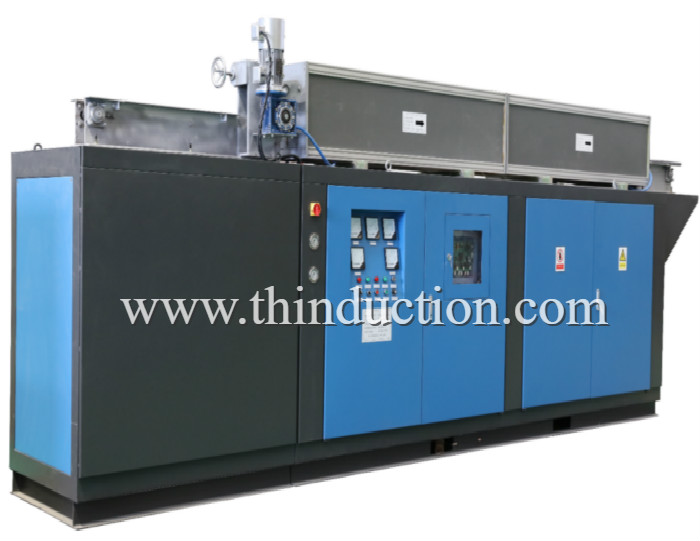

High Power Medium Frequency Induction Heating Furnace

  • Our company integrates the advantages of intermediate frequency induction heating equipments
Share

Our company integrates the advantages of intermediate frequency induction heating equipments at home and abroad. Based on the principles of reasonable structure, advanced technology, practical reliability, and easy maintenance, the production of medium frequency constant power digital control electric furnace, compared with the ordinary line, the energy saving effect is obvious, can save electricity About 8%, because the connection is very small, the failure rate can be reduced by 90%, and debugging and maintenance are simple.


The power output adopts constant control. During the heating process, when the load and temperature change, the load is always full power output. Digital phase shift trigger circuit. It has the advantages of good repeatability, good stability, good symmetry, strong anti-interference ability, convenient debugging, etc. If digital quantity is given, remote control can be realized.


Adopt an integrated structure. Incoming current, voltage, tank current, voltage take signal, to double closed-loop digital circuit for current limiting, pressure limiting, over-current and over-voltage protection, water temperature, pressure protection and so on. Short circuit protection, ground trip protection and phase loss protection. Equipped with output voltmeter, output power meter, working frequency meter, input ammeter, input voltmeter, DC voltmeter, DC ammeter, control panel with missing phase display, inverter work display.


Product Advantages :

1 Heating temperature stability, small temperature difference

2 Saving energy for more than 10%

3 Integrated Designing

4 Stable and have a long life

5 full loading and cold starting

6 frequency automatically tracking technology

7 small pollution of harmonic distortion


Technical parameters of high power medium frequency induction heating furnace

ModelRated powerMF frequencyInput voltageInput currentTransformerMF voltage聽DC voltageDC current
MF-1001001-2.5380V160120750500200
MF-2002001-2.5320200400
MF-4004001-2.5640400800
MF-5005000.7-19606301200
MF-100010000.7-1380V / 660V160012502000
MF-150015000.5-1240016007505003000
MF-250025000.3-14000315013007803200
MF-500050000.25-16604560750013008805700
